Installing on your server

What is in a prop resource

A Prop Studio download is a zip named after the prop, for example garden_gate.zip. The files sit directly in the zip, without a folder around them:

• client.lua (1 KB)

  The test command.

• fxmanifest.lua (1 KB)

  The manifest.

• stream/garden_gate.ydr (5 KB)

  The model. Its name is the model name in scripts.

• stream/garden_gate.ytd (17 KB)

  The textures of the model.

• stream/garden_gate.ytyp (1 KB)

  The archetype. It marks the model as animated; the manifest loads it.

• stream/garden_gate_anims.ycd (1 KB)

  The animation dictionary with every clip.

The names follow the Name in the studio: model garden_gate, animation dictionary garden_gate_anims, and the clip names you set, here open_close.

Install the resource

1. 1

   Make a folder in resources

   In your server's resources folder, create a folder, for example garden_gate.

2. 2

   Unzip into it

   Put the contents of the zip into that folder, so it holds fxmanifest.lua, client.lua and stream.

3. 3

   Add it to server.cfg

   ensure garden_gate

4. 4

   Restart the whole server

   Restart the server, not only the resource, and reconnect. New models and animations only register when the server starts.

A Prop Attach resource installs the same way; its folder name is up to you as well.

The test command

Every prop resource has one chat command, named after the prop:

/garden_gate

It loads the model and the animation, spawns the prop 2 m from you, freezes it in place and plays the first clip, in a loop when that clip has Loop on. Each use spawns one more copy. The command is for testing. On a live server, spawn and play the prop from your own script.

Playing it from your own script

An animated prop plays its clips with PlayEntityAnim. Load the model and the dictionary, spawn the prop where it belongs, freeze it and start the clip. This client-side example puts the gate at a fixed spot and opens it once:

local model = `garden_gate`
local dict, clip = 'garden_gate_anims', 'open_close'

RequestModel(model)
while not HasModelLoaded(model) do Wait(0) end
RequestAnimDict(dict)
while not HasAnimDictLoaded(dict) do Wait(0) end

-- your position and heading
local gate = CreateObject(model, 215.0, -810.0, 30.7, true, true, false)
SetEntityHeading(gate, 160.0)
FreezeEntityPosition(gate, true)

-- play once and stay at the last frame: loop false, stay true
PlayEntityAnim(gate, clip, dict, 1000.0, false, true, false, 0.0, 0)

• The model is loaded by name with backticks, `garden_gate`; the dictionary is the prop name plus _anims.
• For a clip that repeats, such as a fan, pass true as the loop value.
• To play another clip of the same prop, call PlayEntityAnim again with its name, for example close after open.
• For a prop that is already in the world, get its handle first, for example with GetClosestObjectOfType and the model name, then call PlayEntityAnim on it.

How other players see the prop depends on how your script spawns and syncs it. Test it with two players before you rely on it.

Prop Attach resources

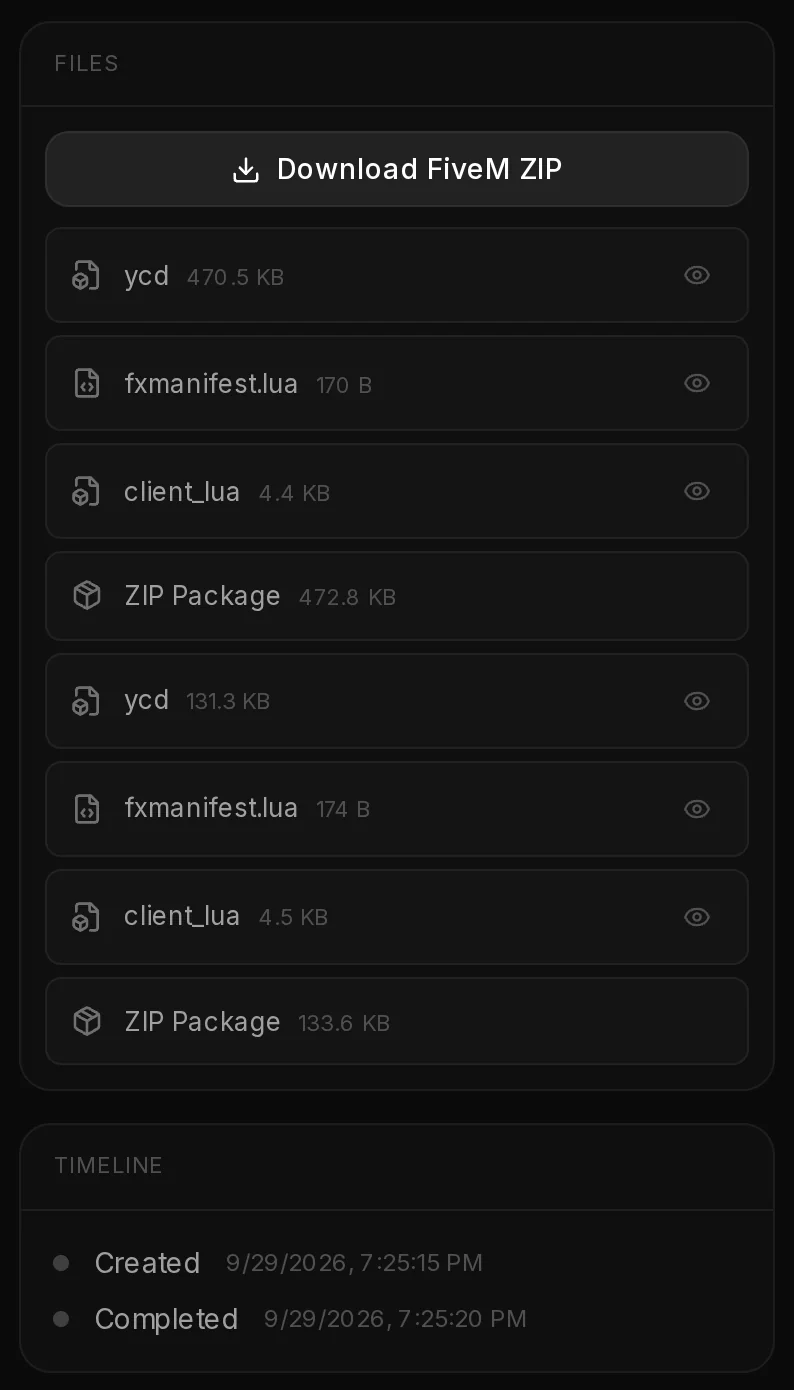

A Prop Attach build makes one resource per version of the animation. For the cup on the moonwalk these are moonwalk_props_static and moonwalk_props_locomotion, the in-place and the walking version. The job page lists the files of both, each ending in a ZIP Package.

12

1. 11. Download FiveM ZIP: the in-place version
2. 22. ZIP Package: the second one is the walking version, with no download button yet

Download FiveM ZIP at the top of Files downloads the in-place version, named moonwalk_props-inplace.zip. The walking version has no download button on the page yet.

• stream/moonwalk.ycd

  The animation, unchanged from the original.

• client.lua

  Spawns the props, attaches them to their bones, plays the clip and cleans up.

• fxmanifest.lua

  The manifest.

• README.txt

  The commands, the props with their bones, and a note on trainers.

The files sit directly in the zip. Install it with the steps above; the README suggests the folder name moonwalk_props_static. Replace the original animation resource instead of running both: they stream the same animation dictionary and register the same chat command.

Prop Attach commands

The command of a Prop Attach resource is the clip name of the animation, and a second command stops it:

• /moonwalk

  Attaches the props and plays the in-place version.

• /moonwalk_stop

  Stops the animation and removes the props.

• /moonwalk_move

  The walking version, from its own resource. It stops with /moonwalk_move_stop.

• The props also go away on their own when the animation stops, the player dies, or the resource stops.
• Trainers such as Menyoo play the animation from its dictionary and clip name, but without the props; those only come with the command.
• Emote menus such as rpemotes take a prop model, a bone and six placement numbers per emote. The PROPS table at the top of client.lua has all of them. For playing the animation itself from a menu, see the AI Animations guide.
